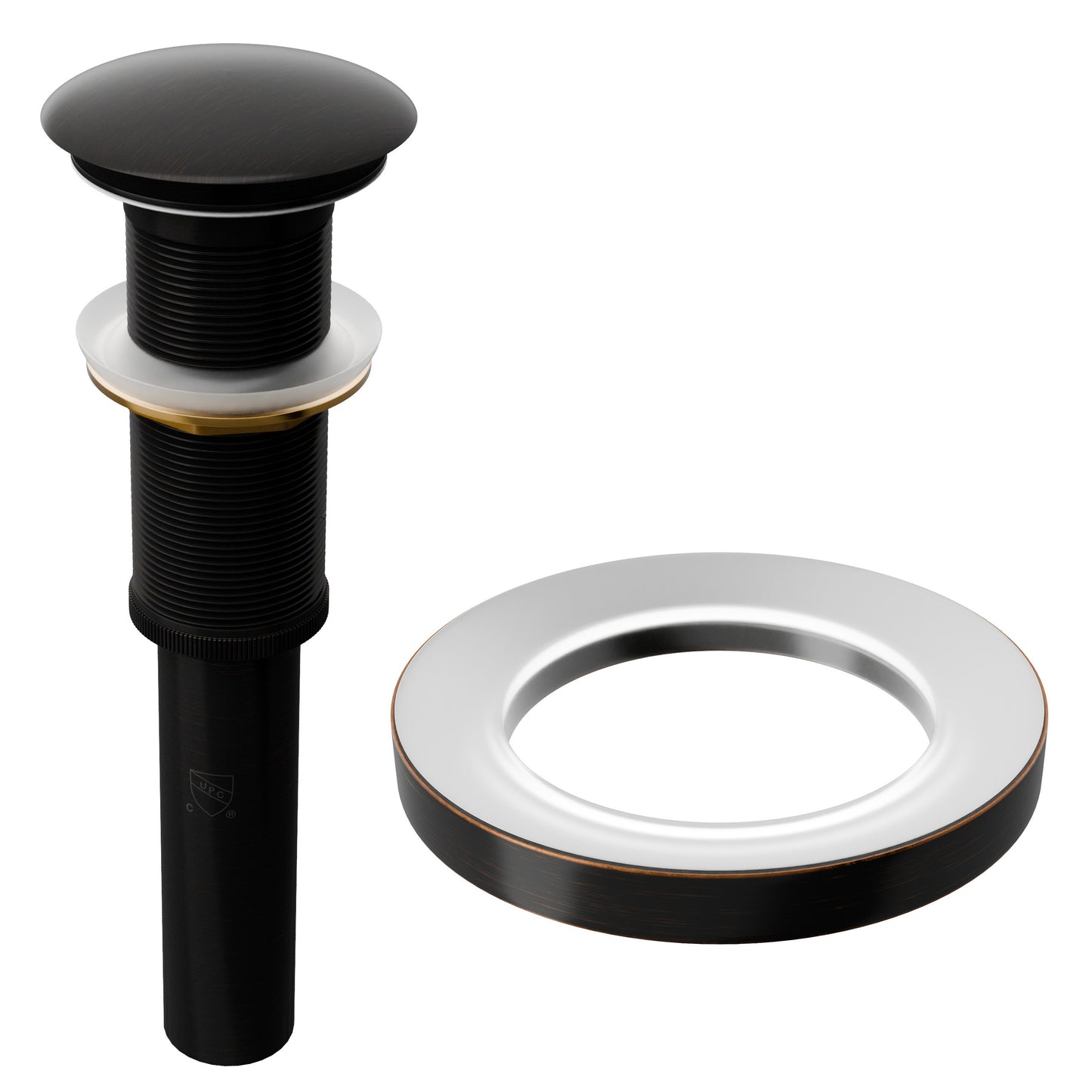

Umbrella Drain without Overflow, Mounting Ring UPD-MR series


Umbrella Drain without Overflow, Mounting Ring UPD-MR series

$85.00 MSRP

124 in stock

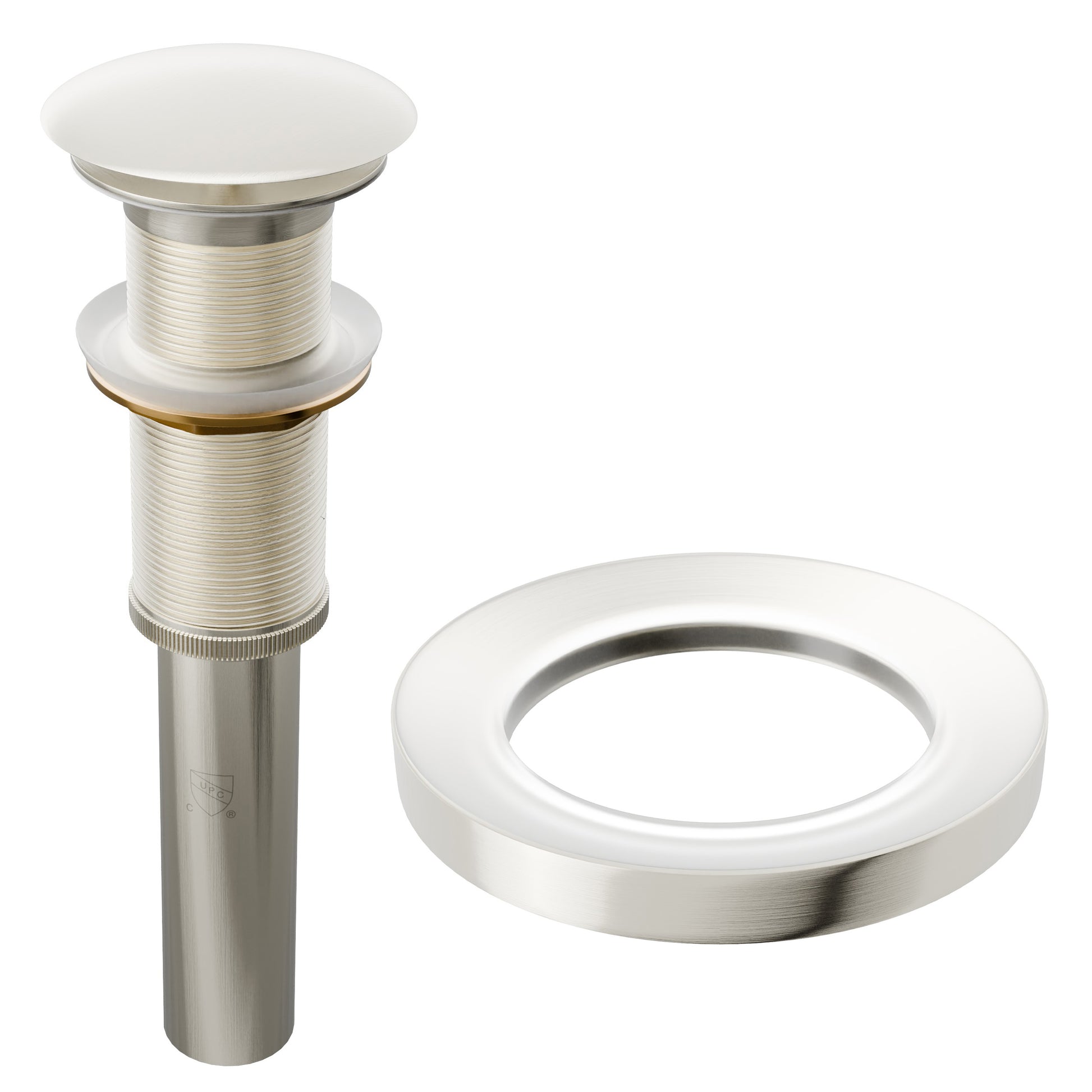

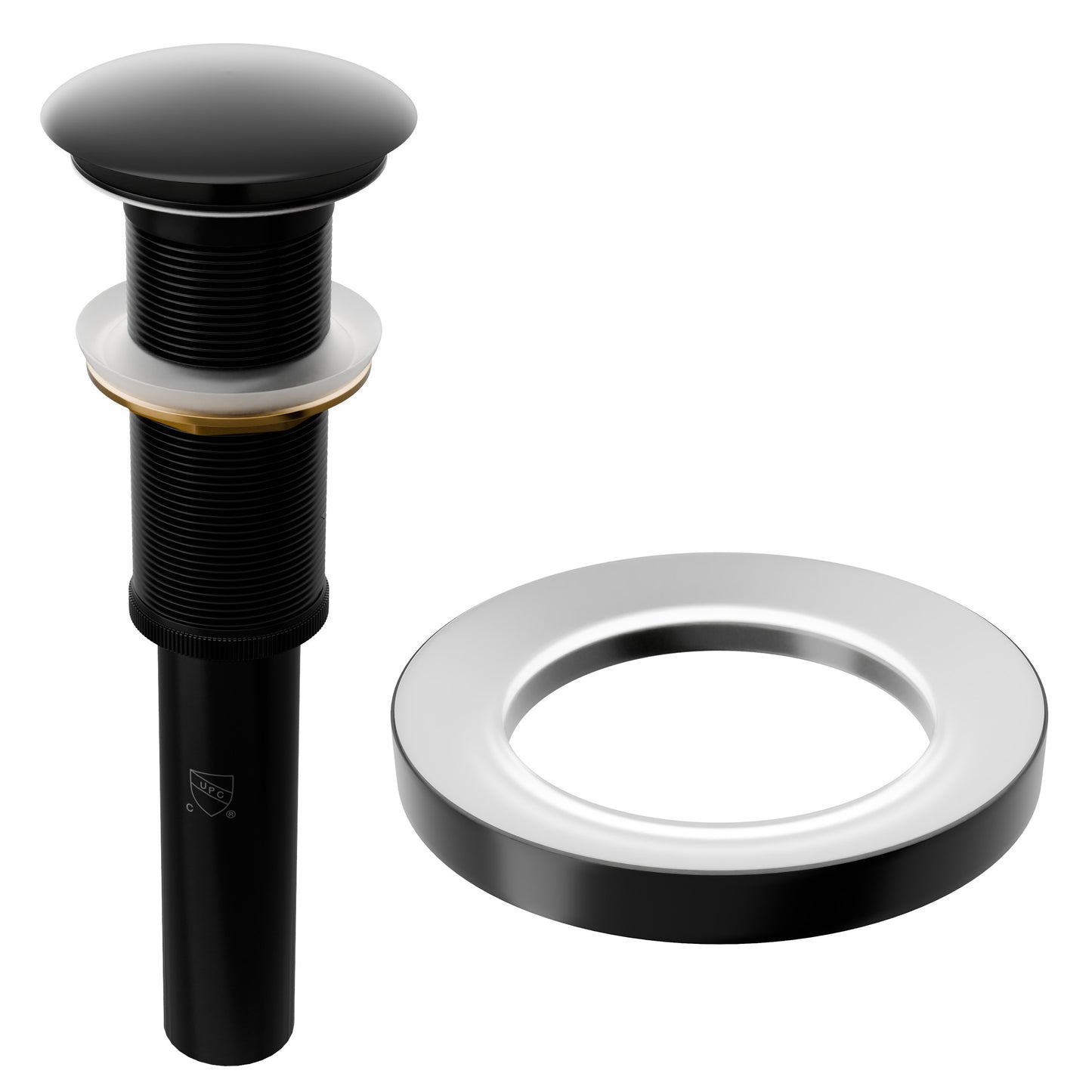

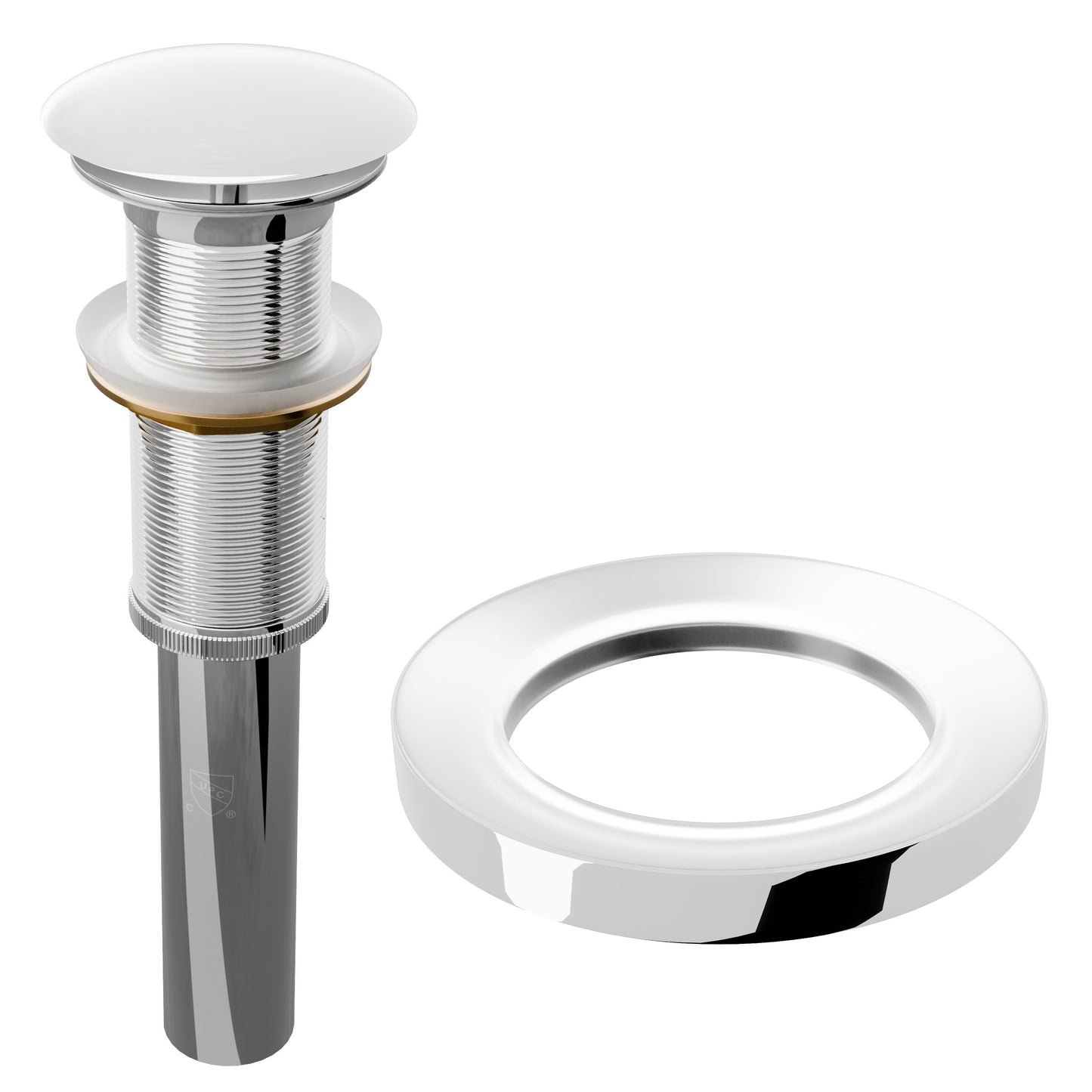

  • Umbrella sink drain without overflow and mounting ring
  • Solid brass construction
  • Limited lifetime warranty
  • Includes rubber seals and fastener for installation
  • 9 1/4-inches total umbrella drain length
  • Fits any standard 1.75-inch drain opening
  • Tailpipe dia. 1.25-inches
  • Threaded pipe dia.1.625-inches
  • Flange 2.375-inches
  • Mounting ring: 3-inches in dia. by 3/8-inch high with inside dia. of 1 5/8-inches
  • Fits any standard vessel sink
  • This drain always stays open

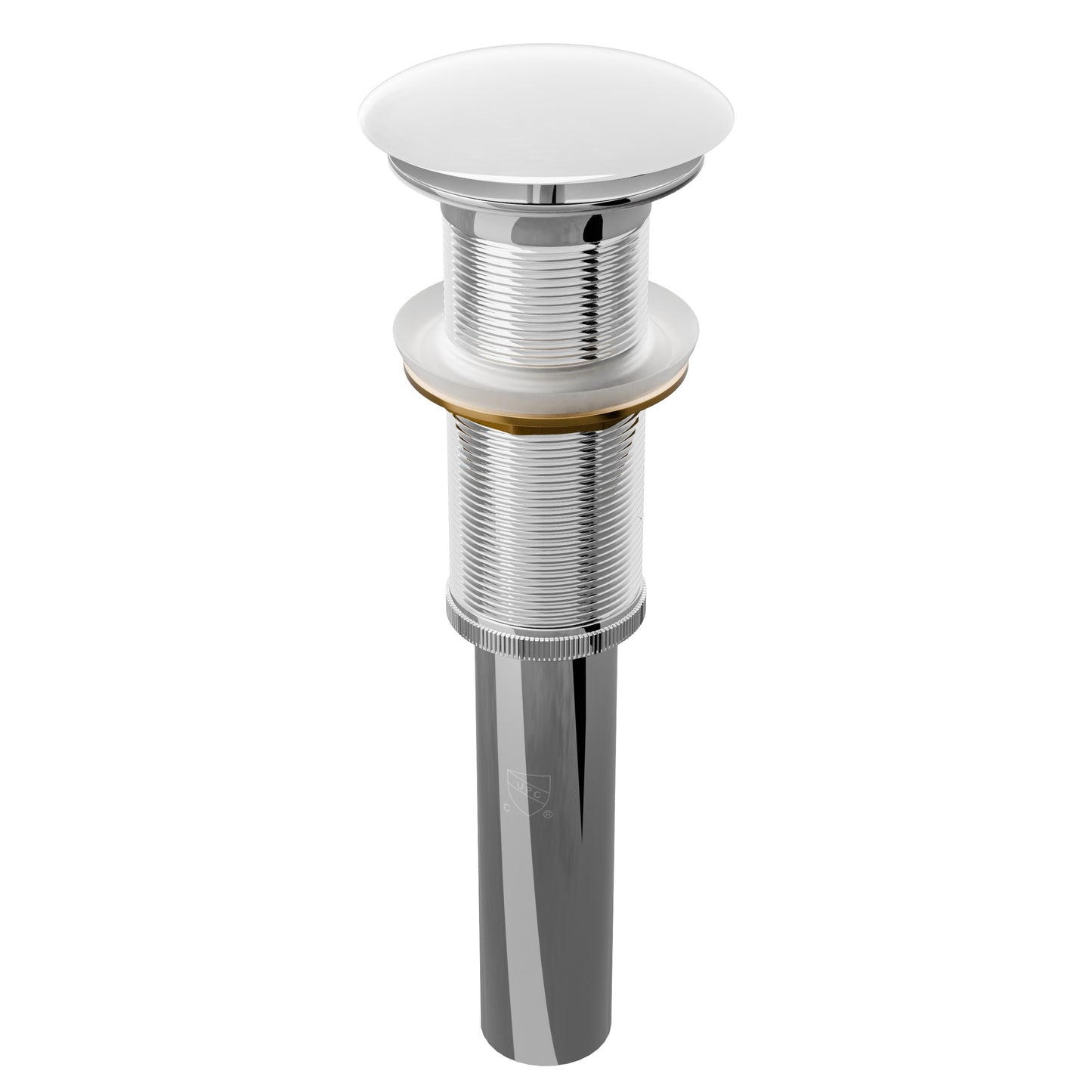

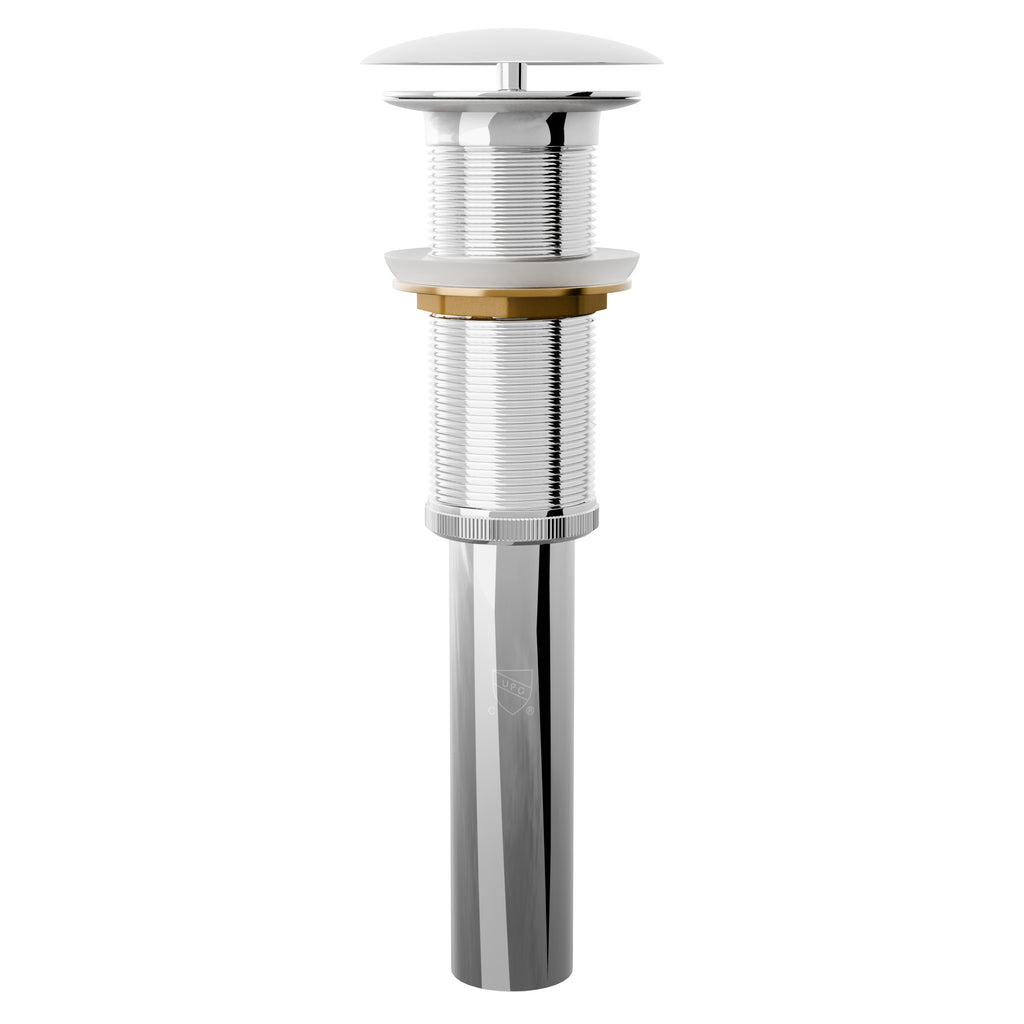

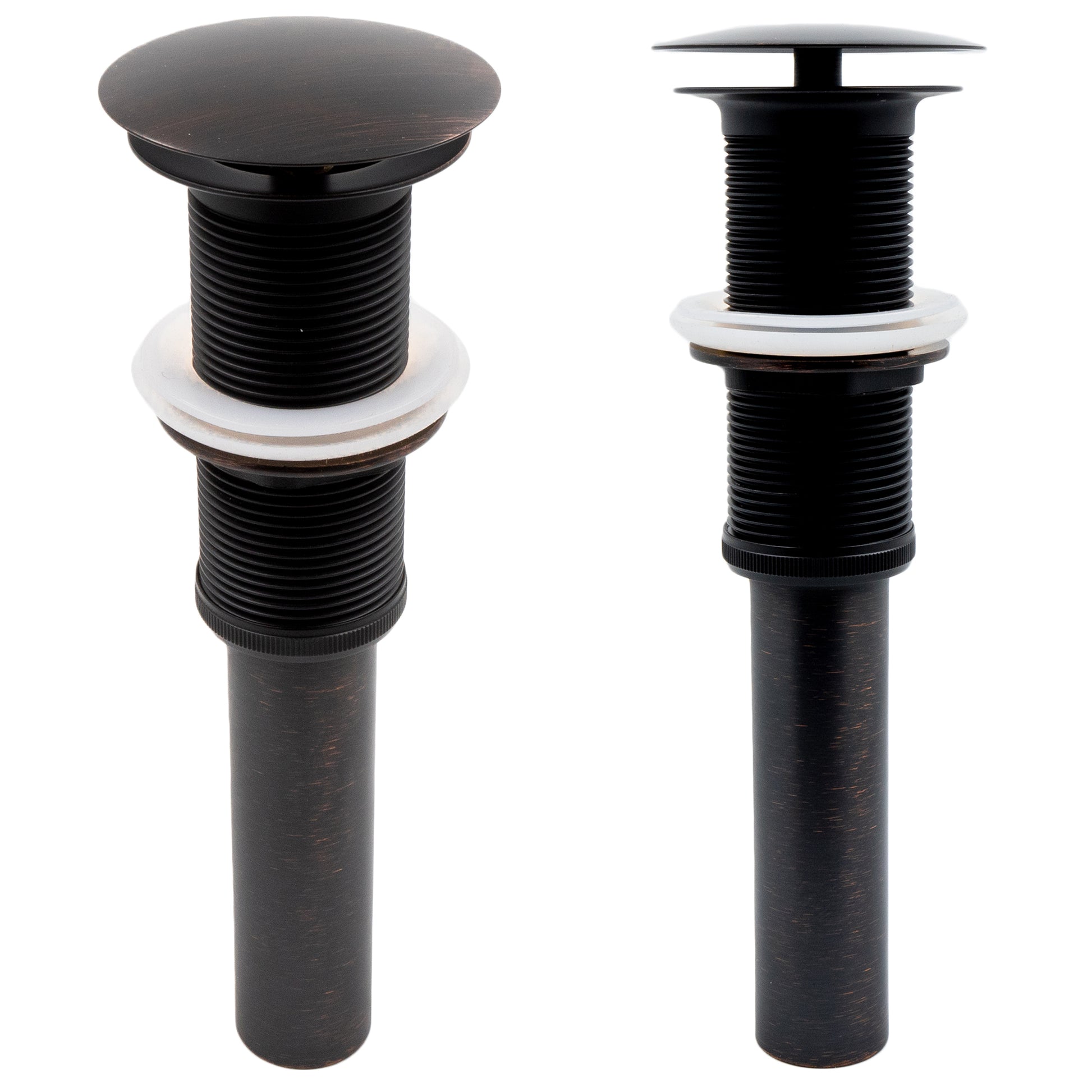

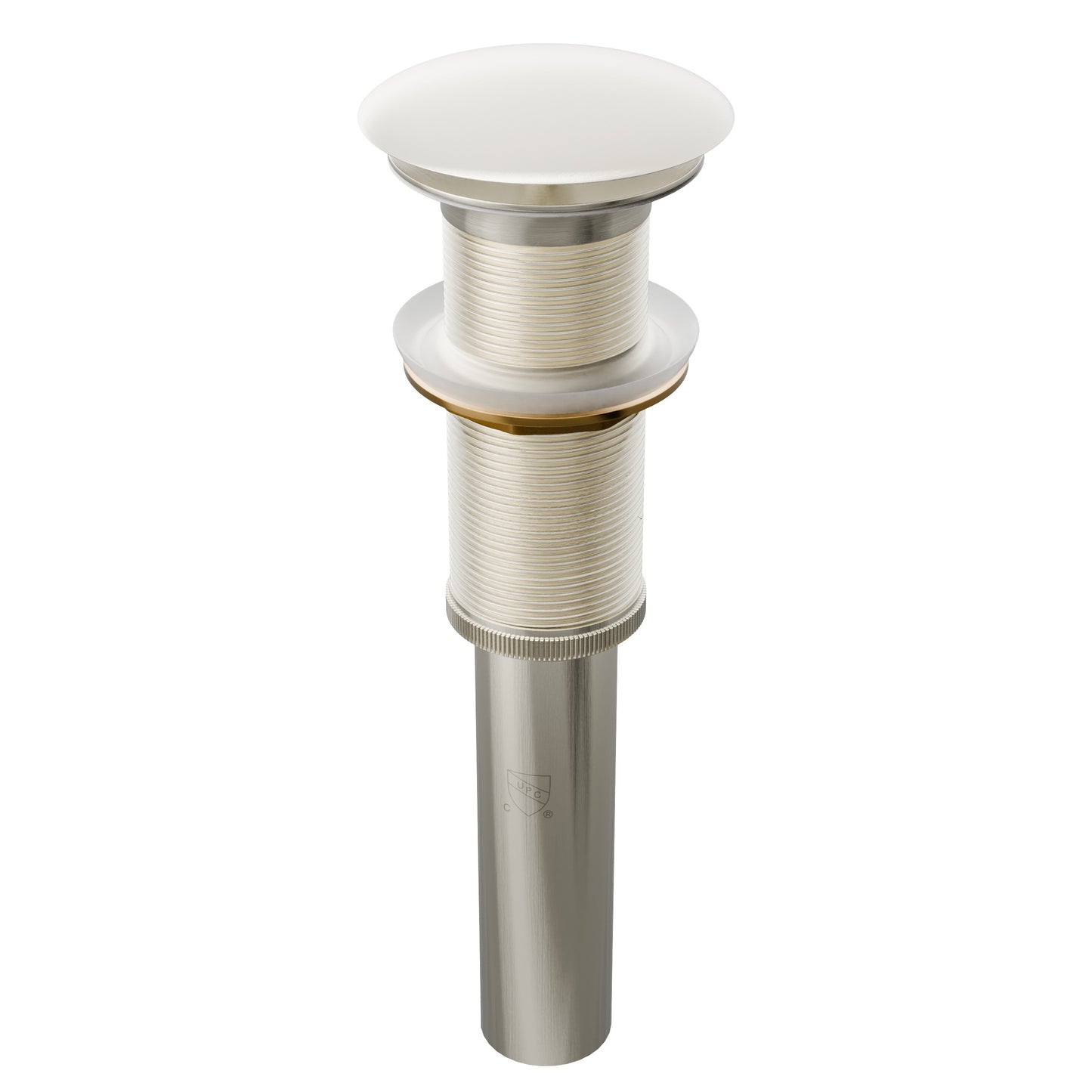

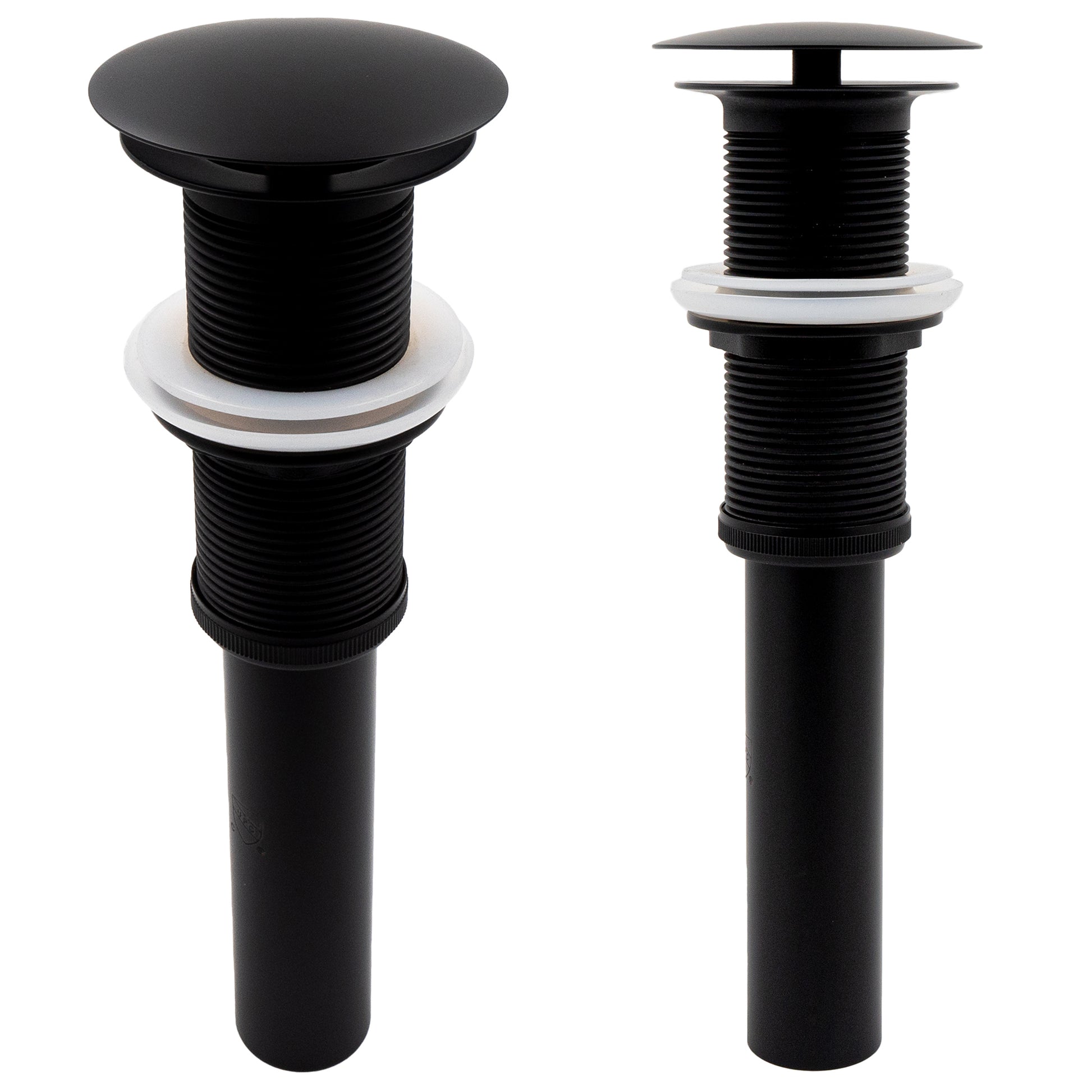

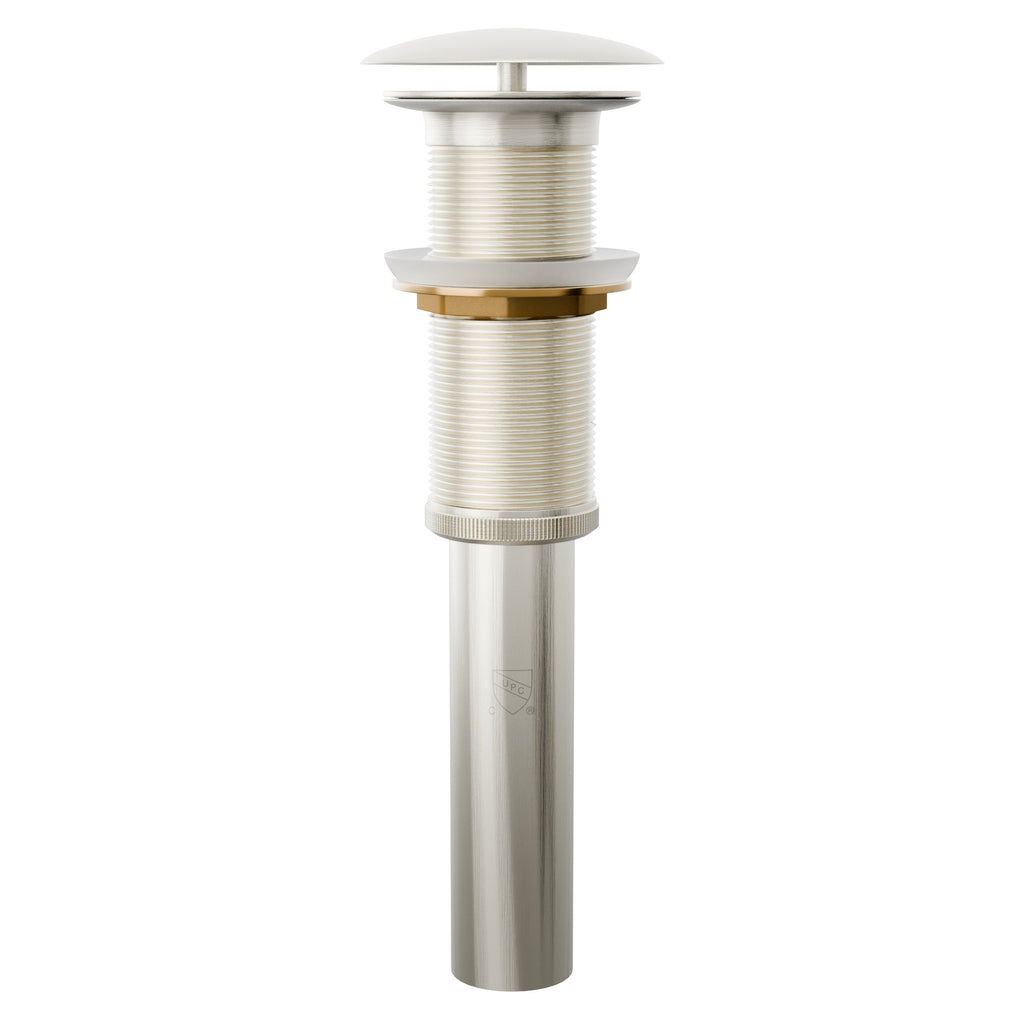

Complete your vessel sink with this vessel umbrella drain and mounting ring from Novatto. Constructed of solid brass and plated with lifelong finishes. Designed to work with glass, stone, ceramic, or any sink with a 1.75-inch drain opening, this pop-up drain will not work with most copper bath sinks or drain openings less than 1.75 inches. The drain assembly includes two rubber seals and a brass fastener for easy installation. The drain is 8.5 inches high (when closed) with a 1.25-inch diameter tailpipe at the bottom. This drain always stays open.

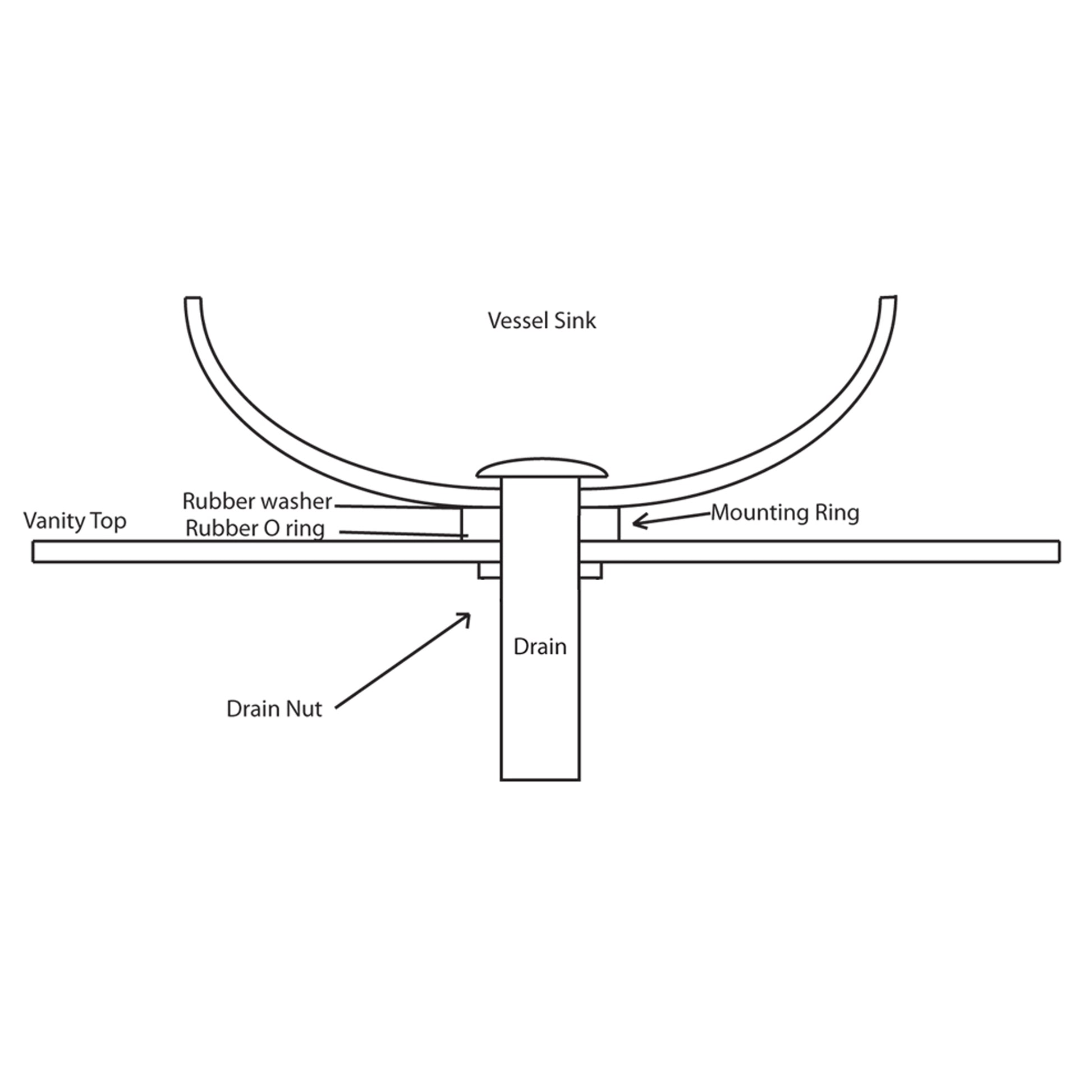

This high-quality mounting ring will complement any vessel sink that has a rounded bottom. Measuring 3 inches in diameter by .375-inch high with an inside diameter of 1 5/8-inches, the ring is to be installed between the vessel sink's bottom and the top of the counter. Constructed of solid brass for strength and durability, the ring has a plated finish.

Let your style flow and enjoy Novatto's Limited Lifetime Warranty. Supreme packaging and double boxing ensure damage-free delivery. Novatto's customer service is always here to answer any additional product questions at 844.404.4242 or

Spec. sheet
Item Length (inches) 2.75
Item Width (inches) 2.75
Item Height (inches) 8.75
Item Weight .5
Package length (inches) 3
Package width (inches) 9
Package height (inches) 3
Package weight (pounds) 1
